OS-9 Software and Tools
After more than a decade on the market, OS-9 (® Microware) has become a standard in the realtime field. OS-9 combines perfectly all the requirements of professional users: Multitasking and multi-user realtime kernel, ROMable kernel, Utilities/Tools and user programs, Unix file structure as well as networking capability. A modular architecture structure allows scaling to suit any type of hardware configuration.
As a successor to FasTrak and Code Warrior, Microware Hawk is an OS-9 integrated development environment for Windows98/NT. While its basic functions are edit, compile and debug of application source code, Hawk also allows to manage complex software projects, solo or team-based, including version control. Hawk has been designed to significantly increase software productivity, and will speed up your product development process
OS-9 for MBX Board Level Solution
As a Microware partner all BSP's for all Motorola CPU's and OS-9 software from Microware is available by SimTech. Please send us a e-mail: E-Mail of D. Simon

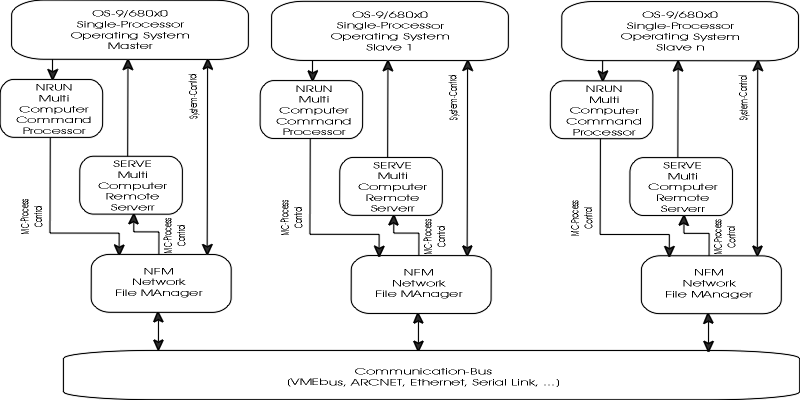

The SimTech Multicomputer concept provides a processing power that can be compared to those of medium to large computer systems. It is important to SimTech that its Multicomputer Concept is clearly ahead in price/performance.
The philosophy of the SimTech Multicomputer Concept extends over the fundamental hardware criterias to a standardized Multicomputer Operating System. The SimTech Multicomputer Operating system realized allows the optimal use of the Multicomputer hardware, and it provides the connection to widely accepted operating systems and program libraries.
The single CPU operating system OS-9 has been selected as the basis of the SimTech Multicomputer systems realized. The reason for this is given by the widespread acceptance that OS-9 found as the standard operating system for 680x0 processors.
Main issues for the SimTech Multicomputer OS-9 are:
The realization of the SimTech Multicomputer OS-9 has been done without touching the inner structure of OS-9, just by use of already existent system resources. This guarantees a 100 percent compatibility.
Main part of the SimTech Multicomputer system is the master CPU. This means:
Furthermore the master controls all mass storage devices in the system (floppy disk, hard disk, optical disk, tape drive, network) and a global RAM disk. The intersubsystem communication physically takes place via the VMEbus. The communication is done logically via the Network File Manager. This procedure automatically guarantees the integrity of the file system that the OS-9 Master controls.
If a user program consists of multiple subtasks, these may be exported to other CPU´s, resulting in a performance improvement that increases linearly with the number of installed CPU units. Thus, a fundamental system requirement is the ability to start tasks on other CPU´s. This features is not provided by standard OS-9 products. Thus the SimTech Multicomputer OS-9 has the "Multicomputer Command Processor" NRUN and the "Multicomputer Remote Server" SERVE. With NRUN, any process can be started on any CPU in the system. The only assumption is that the target system has been previously prepared to act as a Multicomputer Remote Server by starting SERVE.
The SimTech Multicomputer Operating System consists of the standard OS-9 operating system, OS-9 networking utilities, and sophisticated multicomputer extentions. Thus, it is hardware independent. Every CPU unit offered by SimTech can be used within a Multicomputer System. Furthermore, not only the VMEbus, but also an Ethernet or ARCNET network, or a serial link may be used as physical communication channel. Thus, the SimTech Multicomputer System is not only applicable as a fast, central processing system. It is also ideally suited for the construction of distributed, intelligent control systems.
The Math Emulation Module supports those instructions of the 68882 instruction set which are not implemented by the 68040 and 68060 FPU hardware like:
Also a new C-Library clib040h.l is included in the FPU040 Emulator pagages. This library uses the standard 68040/60 hardware floating-point instruction set to emulate the math functions.
| function: | 68882/50 MHz | 68040/25 MHz (traps) | 68040/25 MHz (clib040h.l) | 68040/25 MHz(Microware) |
|
log(x) |
22 us |
21 us |
17 us |
543 us |
|
ln(x) |
21 us |
21 us |
16 us |
544 us |
|
e^x |
20 us |
19 us |
12 us |
303 us |
|
x^y |
39 us |
39 us |
26 us |
760 us |
|
sin(x) |
17 us |
17 us |
11 us |
695 us |
|
cos(x) |
17 us |
17 us |
11 us |
696 us |
|
tan(x) |
19 us |
19 us |
12 us |
685 us |
|
arcsin(x) |
12 us |
12 us |
10 us |
696 us |
|
arcos(x) |
12 us |
12 us |
10 us |
703 us |
|
arctan(x) |
15 us |
15 us |
11 us |
689 us |
|
floor(x) |
- |
- |
3,81 us |
95,14 us |
|
ceil(x) |
- |
- |
4,21 us |
22,79 us |
FAT12/16/32 file manager for floppy- and hard-disks for OS-9/68k/PPC and X86
The OS-9 DOS File Manager (IRBF) allows you to transfer files between PC's (DOS, Windows95 and WindowsNT) and OS-9 systems. An OS-9 machine with IRBF installed can read and write files from/to DOS, Windows95 and WindowsNT formatted disk. The IRBF emulate the Random Block File manager's (RBF) major functions at the program and device driver interfaces. Consequently, most OS-9 programs and drivers can use either RBF or IRBF file managers without change. All the C32 and the ULTRA C C-Libraries function calls are supported.
The FAT12, FAT16 and FAT32 allocation tables and 512- to 2048-byte/sector are supported. The Windows95 long filenames (VFAT system) is also supported by the IRBF.
IRBF supports partitioned disks automaticaly. It recognize automatically the size and the beginning logical sector number (LSN). The different partitions are selected via the drive number, for example drive number 0 = partition 0, etc. Also non partitioned drive like JAZ-Drives are supported. ZIP, JAZ and MO-drives are supported.
The IRBF use a write-behind cache to speed small read and writes. Also the FAT-sectors are cached.
Most of the OS-9 utilities are supported:
OS-9 utilities not supported:
The IRBF uses the preemption feature, but it disables the preemption before calling the drivers.
The Bootpd daemon is a server program that allows the configuration networked OS-9 diskless CPU´s (P4X) to boot from SPARC's, MIPS and PC´s. Network configuration parameters for each OS-9 machine are kept in a configuration file called BOOTPTAB. This file is usually maintained by network system administrator.
To support diskless OS-9 machines or remote configuration, the OS-9 machines must be configured to use the bootp protocol. When workstation or servers are configured for bootp, the bootpd daemon must be enabled under Inetd on the least one server machine in the network.
This Bootpd daemon has been tested for SUN, SGI, Linux Windows95 and WindowsNT 4.0. For the Windows95 and WindowsNT there is also an complete NFS Serverpackage .
BOOTPD Description:
NAME bootpd, bootpgw - Internet Boot Protocol server/gateway
SYNOPSIS bootpd [ -i -s -t timeout -d level - c chdir - path ] [ bootptab [ dumpfile ] ] bootpgw [ -i -s -t timeout -d level ] server
DESCRIPTION Bootpd implements an Internet Bootstrap Protocol (BOOTP) server as defined in RFC951, RFC1532, and RFC1533. Bootpgw implements a simple BOOTP gateway which can be used to for ward requests and responses between clients on one subnet and a BOOTP server (i.e. bootpd) on another subnet. While either bootpd or bootpgw will forward BOOTREPLY packets, only bootpgw will forward BOOTREQUEST packets.
One host on each network segment is normally configured to run either bootpd or bootpgw from inetd by including one of the following lines in the file /etc/inetd.conf:
bootps dgram udp wait root /etc/bootpd bootpd bootptab bootps dgram udp wait root /etc/bootpgw bootpgw server
This mode of operation is referred to as "inetd mode" and causes bootpd (or bootpgw) to be started only when a boot request arrives. If it does not receive another packet within fifteen minutes of the last one it received, it will exit to conserve system resources. The -t option controls this timeout (see OPTIONS).
It is also possible to run bootpd (or bootpgw) in "stan- dalone mode" (without inetd) by simply invoking it from a shell like any other regular command. Standalone mode is particularly useful when bootpd is used with a large configuration database, where the start up delay might otherwise prevent timely response to client requests. (Automatic start up in standalone mode can be done by invoking bootpd from within /etc/rc.local, for example.) Standalone mode is less useful for bootpgw which has very little start up delay because it does not read a configuration file.
Either program automatically detects whether it was invoked from inetd or from a shell and automatically selects the appropriate mode. The -s or -i option may be used to force standalone or inetd mode respectively (see OPTIONS).
OPTIONS
bootptab specifies the name of the configuration file from which bootpd loads its database of known clients and client options (bootpd only).
dumpfile specifies the name of the file that bootpd will dump its internal database into when it receives a SIGUSR1 signal (bootpd only). This option is only recognized if bootpd was compiled with the -DDEBUG flag.
server Specifies the name of a BOOTP server to which bootpgw will forward all BOOTREQUEST packets it receives (bootpgw only).
OPERATION
Both, bootpd and bootpgw, operate similarly in that both listen for any packets sent to the bootps port, and both simply forward any BOOTREPLY packets. They differ in their handling of BOOTREQUEST packets.
When bootpgw is started, it determines the address of a BOOTP server whose name is provided as a command line parameter. When bootpgw receives a BOOTREQUEST packet, it sets the "gateway address" and "hop count" fields in the packet and forwards the packet to the BOOTP server at the address determined earlier. Requests are forwarded only if they indicate that the client has been waiting for at least three seconds.
When bootpd is started it reads a configuration file, (nor- mally /etc/bootptab) that initializes the internal database of known clients and client options. This internal database is reloaded from the configuration file when bootpd receives a hangup signal (SIGHUP) or when it discovers that the configuration file has changed.
When bootpd receives a BOOTREQUEST packet, it looks for a database entry matching the client request. If the client is known, bootpd composes a BOOTREPLY packet using the data base entry found above, and sends the reply to the client (possibly using a gateway). If the client is unknown, the request is discarded (with a notice if debug > 0).
If bootpd is compiled with the -DDEBUG option, receipt of a SIGUSR1 signal causes it to dump its internal database to the file /etc/bootpd.dump or the dumpfile specified as a command line parameter.
During initialization, both programs determine the UDP port numbers to be used by calling getservbyname (which nomally uses /etc/services). Two service names (and port numbers) are used:
If the port numbers cannot be determined using getservbyname then the values default to boopts=67 and bootpc=68.
FILES
BUGS
Individual host entries must not exceed 1024 characters.
DARPA Internet Request For Comments:
Microsoft's Windows NT workstation and server platforms have rapidly evolved to become robust an stable business computing solutions for the 90's and beyong. The awesome computing power of today's personal computer desktop combined with Microsoft's Windows NT, burs the line between what has been traditionally considered a personal computer and a workstation. Windows NT is well on the way becoming the organizational workstation of the future for high-end personal computing, and an important server platform.
The Windows NT is easy to install and to administrate, a familiar easy-to-use interface, support for a large number of Microsoft Windows applications, and the ability to run on inexpensive PC platforms and microprocessors such as the Intel Pentium.
The NFS is a client-based program that implements the Network File System (NFS) as defined by Sun Microsystems for PCs and compatible machines. The NFS may be used with a wide variety of NFS server-based products, including the NFS Server for DOS, Windows and WindowsNT. The NFS client uses the NFS protocol to allow PCs to communicate with NFS servers. NFS works with the Microsoft TCP/IP software (including as part of Mirosoft Windows NT or Windows 95 operating system) to connect remote network drivers and printers in multi-vendor UNIX and mainframe environments.
The NFS allows Windows users on a local area (LAN) to transparently access, manipulate and print files on servers which implement the NFS protocol, NFS enables you to dynamically display and access a virtually unlimited number of NFS resources through the Windows Program Manager. You may also map connect networks printers. NFS provides file access to remote hosts running UNIX, VMS, OS-9 and other operating systems which support NFS servers (including PCs acting as NFS server).
The NFS incorporates the following features:
Welcome to the winderful world of the standard file management with source. D-ISAM is endeavouring to maintain a recognised standard with a little more user friendliness than has been encountered with the original standard bearer.
It has often been said that copying, or in this case emulating, is the most sincere form of flattery. We agree. We believe that C-ISAM, from INFORMIX Software INC. has defined the best universal indexed filing method on the market. We are by no means the only people who think so and this fact is what made the "C-ISAM standard" the most recognizable indexed file management standard in computerdom.
If you are not familar with C-ISAM, follow the following sequence of reading to help you get going.
D-ISAM is intended to emulate C-ISAM V.2, plus add an ounce of improvement. In fact it has all of the features of V.3, except the "decimal" numbering system, transaction processing, and ISCLUSTER().
D-ISAM is NOT a copy of C-ISAM, but is an emulation. From the perspective of the code, the only thinks that are the same are: All parameters, the file structure and the file locking scheme. All source is unique to SimTech.
The D-ISAM package contain the library, include files and some demo files.
Following functions are in the library:
The D-ISAM Libraries are also as source-code available.
under construction, comming soon
HTTP (Hyper-Text-Transport-Protocol) is a protocol to transport HTML-documents, Ascii-text, graphics, programms (Java, or applications), files, etc. A Webpage a common GUI.
The advantage is that the Web-pages are represented with browsers on different operating platforms like Windows95/NT, Unix, OS-9, etc, is the same.
under construction

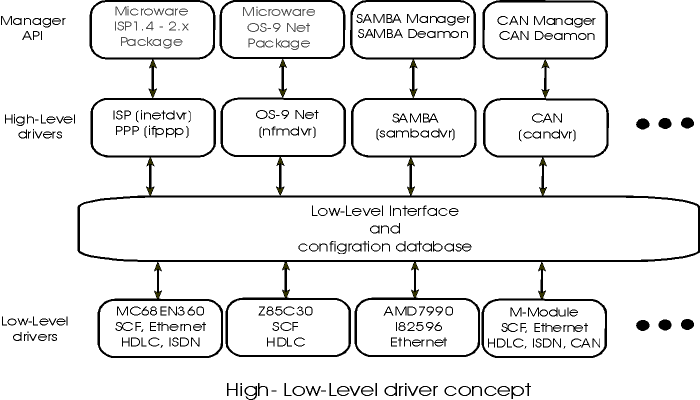

With this software package you can easily mount Windows resources without special Software on the Windows-computers (server or workstations). The following Windows-Versions have been tested.
The software runs on the following OS-9 platforms:
OS-9 Network requiments are:
The software package consist of 5 modules:
Tests versions are available on request.
under construction
The Memory Module Filemanager (mmfm) allows a simple emulation of disk files with memory datamodules. Files are accessed like ordinary RBF files. This avoids the need of the RBF filemanager (for EPROM- or FLUSH-disks) in diskless or ROM based systems.
The device name for memory datamodule file is /mmf. A simple example is
The file startup is copied to a data module named mmf_startup. This data module can be burned into an EPROM or FLUSH.
list this file.
There are some important restriction on mmf files:
In the next future also a flush-writealgorithm will be implemented.
The advantage is that application using read-calls for initialisation can be used without changes in an embedded environment. For this use can change the mmf- descriptor as dd-descriptor. In this case the mmfm acts as default drive.
For example: the login command that use /dd/ETC/password or the sysgo, that use /dd/startup.
This Firewall Toolkit is a port of the TIS FWTL
The TIS Internet Firewall Toolkit (hereafter referred to as "the toolkit") is a set of programs and configuration practices designed to facilitate the building of network firewalls. Components of the toolkit, while designed to work together, can be used in isolation or can be combined with other firewall components. The toolkit software is designed to run on UNIX systems using TCP/IP with a Berkeley-style "socket" interface.
Throughout this documentation, a distinction is made between "configuration practices" and software. A configuration practice is a specific way of configuring existing system software, while a software component of the toolkit is a separate program which may replace or enhance existing system software. Thus, when the documentation refers to the configuration practice applicable to configuring some system daemon in a secure manner, it is assumed that the base operating system in question has existing support for that software, and that it is capable of being configured. The exact details of how to configure various system utilities differ from vendor implementation to vendor implementation and are outside of the scope of this document. In general, most UNIX systems with BSD-style networking will support all the functionality and services referred to herein.
Installing the toolkit assumes practical experience with UNIX systems administration and TCP/IP networking. At a minimum, a firewall administrator should be familiar with installing software and maintaining a running UNIX system. Since components of the toolkit are released in source code form, familiarity with building packages using make is required. The toolkit does not try to provide a "turnkey" network firewall, since every installation's requirements, network topology, available hardware, and administrative practices are different. Depending on how the toolkit is configured, different levels of security can be achieved. The most rigorous security configurations are not for everyone, while for others anything less will not suffice. It is the responsibility of the firewall installer to understand the security policy of the network that is to be protected, to understand what constitutes acceptable and unacceptable risks, and to rationalize them with the requirements of the end users. Performing this analysis is the hardest task in implementing any security system. The toolkit, unfortunately, cannot do it for you; it can only provide the components from which to assemble a solution.
The toolkit consists of three basic components:
Design Philosophy Configuration Practices / Verification Strategies Software Tools
Individuals considering using the toolkit may use any or none of these components, as they see fit.
Design Philosophy
The TIS Firewall Toolkit is designed to be verified for correctness as a whole or at a component level. This appears to be a fairly novel approach for a network firewall, as many existing firewall systems rely on software that is "known to be good" or that is considered trustworthy because it has been used extensively for a long time. One problem with the "known to be good" approach is that historically it hasn't been very reliable. Certain software components such as mailers are frequently exploited in break-ins, no matter how carefully they are maintained. Problem programs are often complex pieces of software, often implemented in several tens of thousands of lines of code, which require system privileges in order to operate. As a step towards addressing this, the firewall toolkit is designed to operate along the basic design principles that:
Even if there is a bug in the implementation of a network service, it should not be able to compromise the system. Hosts on the untrusted network should not be able to connect directly to network services that are running with privileges. Network services should be implemented with a minimum of features and complexity. The source code should be simple enough to be reviewed thoroughly and quickly. There should be a reasonable way of testing the correctness of the system.
These design principles can be effectively applied to any network firewall architecture.
Configuration Practices
Risk Analysis
Before beginning to design a firewall, it is important to have a clear idea of what the resulting firewall will provide protection against, how it will comply with existing corporate or organizational standards, and how it fits into the overall security architecture of the network. Once the security goals of the firewall have been enumerated, user requirements and business practices are considered, and (it is hoped) a satisfactory design objective can be derived.
Perimeter Defense
One important consideration in setting up a firewall is that it is, first and foremost, a perimeter defense. Firewalls do not provide any protection once an attacker has gotten past them. Having a firewall is analogous to a large steel door as the front door to one's building -- it provides excellent protection against frontal attack. To extend the analogy, if one's security policy is such that a steel front door is required, one should also have steel shutters on the windows, and one should not have connecting doors to the neighboring buildings unless they have steel doors and shutters as well. In practical networking terms, this equates to basic measures such as securing modem pools with passwords, publishing security standards that clearly inform users of their responsibilities, and examining any other networks that share (are "inside") the security perimeter. A single user who decides to purchase a serial line network connection (SLIP) to an Internet service provider can unintentionally completely circumvent a very expensive security system. Having a firewall that uses strong authentication mechanisms such as one-time passwords or cryptographic calculators while having a modem pool that requires no passwords at all indicates an inconsistent security practice. When establishing a perimeter defense, the administrator must first perform a risk analysis, and then make sure that all the entry points into the network are protected equally strongly. If two networks are being connected, and will share a common security perimeter, then both networks should be protected to the same degree, with a consistently enforced shared security policy.
Basic Firewall Architecture
When constructing a network firewall, the first configuration decision that must be made is which of the two security models to follow. The two options are:
That which is not expressly permitted is prohibited That which is not expressly prohibited is permitted
When implementing a firewall following the first approach, one identifies the services that will be provided, addresses the security of those services, blocks all other services and traffic off, and then enables the selected services only once they have been tested and are believed to be secure. In the second approach, one identifies all the services that are believed to present risks and disables or secures them. The first approach is more conservative, accepting that "what we don't know can hurt us," but tends to impose limits on the types and number of services that can be provided through the firewall. The second approach is more versatile, since more services are supported, but runs the risk of degenerating into an arms-race between the administrator and system crackers. Another important consideration is the size of the prospective user community on the protected network. As the protected network grows larger and is harder to monitor completely, it becomes increasingly difficult for an administrator to verify that members of the user community are not themselves providing services over the network that get around the security of the firewall. An example of such a problem would be a user who decides to provide FTP service on a different port from the standard FTP port (port 23) because the FTP service port is blocked by the firewall but the alternate port is not. Eventually the firewall will need to protect the network from attacks (intentional or accidental) from the inside as well as outside.
The toolkit is designed to support users who want to implement firewalls based on the "that which is not expressly permitted is denied" approach. Generally, when building such a firewall, it is important to have good tools to provide access control and secure service for the few services that are provided. The software components of the toolkit implement security for the most commonly used network services.
Archetypal Firewalls
There are several archetypal firewall configurations that the toolkit is designed to support. For a more in-depth look at various basic forms of firewalls. The primary types of firewalls the toolkit is designed to support are dual-homed gateways, screened host gateways, and screened subnet gateways. In these firewalls, the important common factor is a host (a "bastion host") which acts as an application forwarder, traffic logger, and service provider. Maintaining security on the bastion host is of paramount importance, and this is where most of the effort of setting up the firewall is focused.

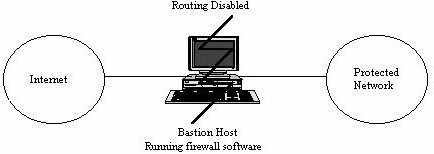

Figure 1: A dual-homed gateway
In the dual-homed gateway configuration, the toolkit software is installed on a host with two network interfaces. The toolkit software provides proxy services for common applications like FTP and TELNET, and security for SMTP mail. Since the bastion host is a security-critical network strong point, it is important that the configuration of the software on that system be as secure as possible.
Dual-homed gateways are an appealing firewall, since they are simple to implement, require a minimum of hardware, and can be verified easily. Most Berkeley-based UNIX implementations have a kernel variable _ipforwarding, which indicates to the operating system that it should not route traffic between networks, even if it is connected to two (which would normally cause the system to act as a gateway router). By completely disabling routing, the administrator can have a high degree of confidence that any traffic between the protected network and the untrusted network is somehow passing through an application that is running on the firewall. Since there is no traffic transferred directly between the internal network and the untrusted network, it is not necessary to show any routes to the private network over the untrusted network. This effectively renders the protected network "invisible" to any systems except the bastion host. The only disadvantage of this type of firewall is that it is implicitly a "That which is not expressly permitted is prohibited" firewall -- and it's impossible to weaken the firewall's security to let a service through even if one later decides one wants to. All services must be supported via proxies on the firewall.

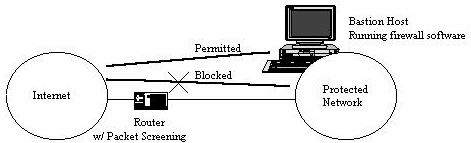

Figure 2: A Screened Host Gateway
A screened host gateway relies on a router with some form of packet screening capability to block off access between the protected network and the untrusted network. A single host is identified as a bastion host, and traffic is permitted only to that host. The software suite that is run on the bastion host is similar to a dual-homed gateway; the system must be as secure as possible, as it is the focal point for attack on the network. Screened host gateways are a very flexible solution, since they offer the opportunity to selectively permit traffic through the screening router for applications that are considered trustworthy, or between mutually trusted networks.
The disadvantage of this configuration is that there are now two security critical systems to be aware of: the bastion host and the router. If the router has access control lists that permit certain services through, it becomes an additional point of complexity to concern the firewall administrator. Verifying the correctness of a screened host firewall is a little more difficult, increasing quickly in difficulty as the number of services permitted through the router grows. Screened host firewalls also introduce management risks -- because the capability exists to open "holes" in the firewall for special applications or influential users, the firewall administrator must be careful to resist pressure to constantly be modifying the screening rules in the router.

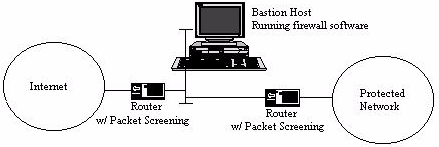

Figure 3: A Screened Subnet Gateway
In a screened subnet firewall, a small isolated network is placed between the trusted network and the untrusted network. Access to this network is protected by screening rules in routers, which restrict traffic so that hosts on the screened subnet are the only systems reachable by both networks. Conceptually, this is the dual-homed gateway approach, applied to an entire network. The main utility of this approach is that it permits multiple hosts to exist on the "outside" network (sometimes referred to as the "demilitarized zone"). An additional advantage to screened host subnets is that the firewall administratok. This effectively renders the protected network "invisible" to any systems except the bastion host. The only disadvantage of this type of firewall is that it is implicitly a "That which is not expressly permitted is prohibited" firewall -- and it's impossible to weaken the firewall's security to let a service through even if one later decides one wants to. All services must be supported via proxies on the firewall.
Figure 2: A Screened Host Gateway
A screened host gateway relies on a router with some form of packet screening capability to block off access between the protected network and the untrusted network. A single host is identified as a bastion host, and traffic is permitted only to that host. The software suite that is run on the bastion host is similar to a dual-homed gateway; the system must be as secure as possible, as it is the focal point for attack on the network. Screened host gateways are a very flexible solution, since they offer the opportunity to selectively permit traffic through the screening router for applications that are considered trustworthy, or between mutually trusted networks.
The disadvantage of this configuration is that there are now two security critical systems to be aware of: the bastion host and the router. If the ro, over a public wide area network. In the illustration, the encryption is separate from the router, but need not be, if integrated encrypting routers are available. Currently, there are several products that act as encrypting bridges at a frame level; i.e., they examine the source and destination address of all packets arriving on one interface, and retransmit the packet out the other. If the encrypting bridge/router is configured to encrypt traffic to a specific network, the packet data is encrypted, and a new checksum is inserted in the header. Once the packet is received at the other side, the peer encrypting bridge/router determines that it is from a network with which the router is encrypting traffic, and decrypts the packet, patches the checksum, and retransmits it.
Someone intercepting traffic between the two encrypting networks would see only useless cipher text. An additional benefit of this approach is that it protects against attempts to inject traffic by spoofing the source network address. Unless attackers know the cipher key that is in use, their packets will be encrypted into junk when they go through the encrypting bridge/router. If the encrypting bridge/router gets traffic for a network with which it is not to encrypt, traffic is transmitted normally. In this manner, a firewall can be configured, with encrypted "tunnels" to other networks. For example, a company could safely share files via NFS or use weakly authenticated network login programs, like rlogin, in safety over their encrypted link, and still have a strong firewall protecting access between the corporate perimeter and the rest of the world. A similar approach could be employed between two companies that wished to establish a business connection for proprietary information, in which traffic between the firewall bastion host on one corporate network and the firewall bastion host on the other corporate network was automatically encrypted.
Strong Authentication
Firewalls can be configured to be impermeable from the "outside" network, but sometimes it is important to permit users to access systems on the protected network from the untrusted network. Travelling staff, staff at conferences with network access, or customers may all need to log in over untrusted network links. In these situations, normal password protection is insufficient, since most applications that use passwords pass them in the clear over the network, where they can be compromised by anyone with a packet-sniffer or equivalent software. In this type of hostile environment, one-time passwords or challenge/response calculators should be used. One-time passwords are passwords that are generated by a user prior to leaving a facility, and which are used sequentially in an agreed-upon manner with the system. If the password is compromised, it is not a security threat, since the password is never re-used. Challenge/response calculators use a secret shared between the system and a portable calculator or smart card to generate an encryption of a random challenge each time the user attempts to log in. Since the only person who could generate the correct encrypted response to the challenge is the user with the specific calculator, the system can authenticate the user without having to exchange a cleartext password.
The toolkit supports one-time passwords or challenge/response systems by including support in the proxy servers for a simple authentication protocol. This authentication protocol is served by a "middleware" authentication server that can embed support for multiple forms of authentication systems simultaneously. The proxy servers can be configured to require authentication (or not) based on the origin or destination of the service request. In this manner, the toolkit provides very flexible configuration of authentication. An administrator typically configures the proxies to require no authentication on outgoing requests, but, perhaps, to require strong authentication for incoming service requests.
Software Components
The following sections list the software components of the toolkit, briefly describing the purpose of each component. These components are all application-level programs, that replace or add to existing software. In some cases, there are other publicly available tools with similar functionality, which can be used instead of or in addition to the firewall toolkit components.
Smap: SMTP Service
SMTP is implemented using a pair of software tools called smap and smapd. Generally, SMTP mail poses a threat to the system, since mailers run with systems-level permissions in order to deliver mail to users' mailboxes. Smap and smapd address this concern by isolating the mailer so that it runs in a restricted directory via chroot, as an unprivileged user. Smap and smapd do not address any issues relating to mail spoofing or denial of service attacks via mail. Smap's primary purpose is to insulate a notoriously buggy program which has been implicated in many break-ins in the past. The bulk of the real mail-processing work is performed normally by sendmail, requiring no modifications to sendmail or its configuration file. When a remote system connects to the SMTP port, the operating system invokes smap, which immediately chrootsto its restricted directory and sets its user-id to an unprivileged one. Since smap requires no system support files, the restricted directory can contain no files other than those that smap creates. There is no risk of smap being tricked into modifying system files (because it is chrooted), and there is no way an interactive session can be obtained via smap (there are no executables in the smap spool directory). Smap's sole purpose is to talk SMTP with other systems, gather mail messages, write them to disk, generate log entries, and exit. The second part of mail processing does not run chrooted to a restricted directory, but still does not require permissions; smapd is responsible for scanning the smap spool directory periodically and submitting the queued messages to sendmail for final delivery. Note that if sendmail is configured normally and smapd is running with the uucp user-id mail can be delivered normally without requiring smapd to run with enhanced permissions. When smapd delivers a message, it clears the file from the spool area.
In this manner, the functionality of sendmail is preserved, while preventing an arbitrary user on the network from communicating directly with sendmail. Analyzing the sendmail program's 20,000 lines of code for bugs is a sizable task when compared to smap's 700 lines.
Netacl: TELNET Service, Finger, and Network Access Control Lists
Inetd contains no provision for access control; i.e., it will permit any system on the network to connect to a service that is listed in inetd.conf. There are several situations where general purpose access control on network services is desirable, and tools to implement such control have been available on the Internet for several years. Netacl is the toolkit component which manages network access control. It permits arbitrary access control specification for each network service based on the client host's network address, and the service requested. Thus, one client (specified either by IP-address or host name) might invoke a different version of telnetd when it connects to the TELNET service port on the firewall.
UDP access control is not provided by netacl. Many "tcp wrappers" available on the Internet (such as Wietse Venema's log_tcp) support access control of a sort for UDP based services. Reliably authenticating the origin of a UDP packet is impossible with the current technology, so netacl does not attempt to address this issue: security for UDP-based services is provided by the draconian means of shutting all security-related UDP-based services off.
Many services that are disabled by default, such as finger, can be selectively enabled for hosts within the private network. Netacl also plays an important role in the configuration practices employed for other services such as anonymous FTP, since it can be configured to perform a chroot prior to invoking a given service. This functionality provides a great deal of flexibility for specifying services that should run under isolation. For example, a finger proxy service can be implemented by configuring netacl to invoke fingerd as an unprivileged user, chrooted to an empty directory. Prior to fingerd's execution, it will be placed in isolation; if there is a security hole in fingerd, [3] it cannot be effectively exploited, since no file system or executables will be available to the attacker.
In the usual firewall configuration, netacl will be used to block all but a few hosts from being able to attempt to login to the firewall via either telnet or rlogin, as well as being used to possibly block access from aggressor sites in the event of an attack.
The security of netacl relies on IP-addresses and/or host names. For security-critical applications control, IP-addresses should be used, to avoid use of the Domain Name System (DNS) to spoof the source of the connection. Netacl does not protect against attacks using spoofing of IP-addresses via source routing or other means; if such attacks are a concern, a router that is capable of screening source routed packets should be employed. The security of the internet daemon inetd is assumed in this configuration. Netacl is designed to be easy to examine for correctness, consisting of 240 lines of C code (including comments); it is a very simple program. Care should be taken in configuring it.
Ftp-Gw: A Proxy Server for FTP
In order to permit file transfer through the firewall without risking compromising the firewall's security an FTP proxy server is provided. The proxy server supports access control based on IP-address and/or host name, and supports secondary access control permitting any FTP command to be selectively blocked or logged as it is transmitted. Destinations for service can also be selectively permitted or blocked. All connections and bytes transferred are logged.
The ftp-gw poses no threat to the security of the firewall system itself, since it runs chrooted to an empty directory and does no file I/O other than reading its configuration file. Since emulating the FTP protocol is somewhat complex, ftp-gw is approximately 1,300 lines of source code and is slightly less easy to verify by examination than other components of the toolkit. The FTP gateway is only intended to provide access to FTP services, and does not address issues of who is authorized (or not) to export files. Support for strong user authentication can be attached to the gateway, to require user authentication prior to exporting or importing files. The FTP gateway is a useful tool, which should be implemented in accordance with a consistent site data security policy. The toolkit includes source code for a modified version of the FTP daemon which permits an administrator to provide both FTP service and FTP proxy service on the same system.
Telnet-Gw: A Proxy Server for TELNET
In order to permit remote terminal access through the firewall, without risking compromising the firewall's security, a TELNET proxy server is provided. The proxy server supports access control based on IP-address and/or host name, and supports secondary access control permitting any destination to be selectively blocked. All connections and bytes transferred are logged. Once users have connected to telnet-gw, they are presented with a simple menu of options to assist in connecting to a remote host.
The telnet-gw poses no threat to the security of the firewall system itself, since it runs without permissions, chrooted to a restricted directory. The source code for telnet-gw is easily reviewed, consisting of approximately 1,000 lines of code. The telnet-gw menu processing is entirely in-memory and no subshells or programs are invoked; no local file I/O is performed other than reading the configuration file. Thus, telnet-gw cannot provide access to an interactive login on the firewall system.
Rlogin-Gw: A Proxy Server for Rlogin
Terminal access via the BSD rlogin protocol may be supported via the rlogin proxy. The rlogin proxy supports permissions checking and access control in the same manner as the TELNET gateway. Rlogin clients can specify a remote system as part of the initial connection to the proxy, eliminating the need for user interaction if authentication is not required.
Plug-Gw: A TCP Plug-Board Connection Server
Certain services such as Usenet news are often provided through a firewall. In such situations, the administrator has the choice of either running the service on the firewall itself, or installing a proxy server. Since running news directly on the firewall exposes the system to any bugs in the news software, it is safer to use a proxy to gateway the service onto a "safe" system on the protected network. Plug-gw is a general purpose proxy that "plugs" two services together transparently. Its primary purpose is for supporting Usenet news, but it can be employed as a general-purpose proxy if desired.
In general, plug-gw is installed on the firewall, so that when a remote system connects to the NNTPport it automatically reconnects to a designated news server on the inside network. If the news server on the inside network connects to the news port on the firewall, plug-gw automatically reconnects to a designated news server on the outside network. This reciprocal connection is based on the IP-address of the originally connecting host. Once plug-gw is connected, it simply copies data until one side or the other shuts down the connection, at which point it exits. Plug-gw is configurable to selectively permit or deny connections based on IP-address/host name. All connections and bytes transferred are logged.
Plug-gw can act as a general portal between the protected network and the outside network; therefore, it should be used sparingly and with caution. Since it acts only as a data pipe, it performs no local disk I/O, and invokes no subshells or processes. In the general case of use for news, plug-gw provides excellent security, since it permits an outside system bi-directional communication with a single port on an internal news server, while still blocking all other traffic. In a sense, plug-gw is similar to adding a configuration rule to a router that permits traffic only between two systems on a single port, except that it logs all transactions.
Optional Components and Configuration Practices
The following components and configuration practices are optional.
Authd: Network Authentication Service
The network authentication server authd provides a generic authentication service for network applications. Its use is optional, required only if the firewall proxies ftp-gw and tn-gw are configured to require authentication. Authd's purpose is to provide a generic interface to multiple forms of authentication. For large organizations, where several forms of authentication challenge/response cards are in use, authd can link them all together to use a single database. A simple administrative shell is included that permits the authentication database to be manipulated over a network, with optional support for encryption of authentication transactions. The authd database supports a basic form of group management; one or more users can be identified as the administrator of a group of users, and can add, delete, enable, or disable users within that group. Authd internally maintains information about the last time a user authenticated to the server, how many failed attempts have been made, and can automatically disable accounts that have multiple failures. Extensive logs are maintained of all authd transactions. Authd is intended to run on a secured host, such as the bastion host, since its database is a possible point of attack.
Login: User Authentication
The toolkit includes a login program named login-sh for user authentication. This version contains support for a variety of authentication protocols using token authenticators such as Security Dynamics' SecurID, Digital Pathways' SecureNet Key, and the Racal Watchword. The login program replaces the user's initial shell, and requires him to authenticate prior to invoking his normal command interpreter. This approach provides good login security without requiring modifications to the vendor-provided login program, and can be activated on a per-user basis. The toolkit version of login provides enhanced logging over the standard version, logging successful logins as well as failed ones.under construction
under construction
The patches for RBF and DIR are listed below:
0x0000048C+r7>4241 clr.w d1
0x0000048E+r7>4841 swap d1
0x00000490+r7>82FC0064 divu.w #100,d1
0x00000494+r7>4841 swap d1
to this:
0x0000048C+r7>4241 clr.w d1
0x0000048E+r7>4841 swap d1
0x00000490+r7>0441076C subi.w #1900,d1
0x00000494+r7>4E71 nop
0x00001534+r7>10280002 move.b 2(a0),d0
0x00001538+r7>4880 ext.w d0
0x0000153A+r7>48C0 ext.l d0
0x0000153C+r7>2F00 move.l d0,-(a7)
0x0000153E+r7>10280001 move.b 1(a0),d0
0x00001542+r7>4880 ext.w d0
0x00001544+r7>48C0 ext.l d0
0x00001546+r7>2F00 move.l d0,-(a7)
0x00001548+r7>1010 move.b (a0),d0
0x0000154A+r7>4880 ext.w d0
0x0000154C+r7>48C0 ext.l d0
0x0000154E+r7>2F00 move.l d0,-(a7)
to this:
0x00001534+r7>4280 clr.l d0d0
0x00001536+r7>10280002 move.b 2(a0),d0
0x0000153A+r7>2F00 move.l d0,-(a7)
0x0000153C+r7>10280001 move.b 1(a0),d0
0x00001540+r7>2F00 move.l d0,-(a7)
0x00001542+r7>1010 move.b (a0),d0
0x00001544+r7>80FC0064 divu.w #100,d0
0x00001548+r7>4240 clr.w d0
0x0000154A+r7>4840 swap d0
0x0000154C+r7>2F00 move.l d0,-(a7)
0x0000154E+r7>4E71 nop
Time module is available that replace the F$Time and the F$Julian. This modules repalce the non millenium clock-driver. If you need it please let me know it. This module is free of charge. You can ftp it ftp://www.simontech.de/incoming. To install this modul is very easy, you must put the time modul into the Extens-list for the init-module and rebuild a new init.
For more infos do not hesitate to contact me.
